Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

Product Categories
Wuhan Future Intepower Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

Model Number : OPzV2-2000

Certification : CE UL ISO9001 ISO14001

Place of Origin : Wuhan

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T L/C, D/A, D/P

Supply Ability : 10000PCS/30Days

Delivery Time : 30 Days

Packaging Details : Carton and Wooden Pallet

Type : OPzV Gel Battery

Nominal Voltage : 2Volt

Rated Capacity : 2000 Ah

Battery Case : ABS material

Battery Designed Life : More than 20 Years

Approx Weight : 144.6Kg

Terminal Type : Female Copper Insert M8 (torque:10~12N.m)

Application : Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.

Contact Now

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

OPzV Gel Battery Features


  • Advanced production equipment and experienced technical personnel.
  • Completely sealed design & Gas recombination

  • High cycle life & Maintenance free

  • Excellent deep cycle performance

  • Better ability of charge acceptance
  • Adapt to the wider temperature range

Construction of OPzV Gel Battery


Positive plate :Tubular plate with die cast Pb-Ca alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : leaf shape polymer separator

Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

Battery container and cover : ABS

Specifications of OPzV Gel Battery



Nominal Voltage (V) 2
Designed Floating Life (20oC) 20+ Years
Nominal Capacity (20oC) 2000 Ah @ C10 (to 1.80Vpc)
Demensions L399mm×W212mm×H807mm
Approx. Weight 144.6 kg (319 lbs)
Terminal Type Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance Approx. 0.24mOhm (fully charged @ 25°C)
Max. Charge Current 400 A
Max. Discharge Current (5S) 3000 A
Short Circuit Current 8300 A
Self Discharge Approx. 2% per month @ 20°C

Ambient Temperature

 Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage 2.25 - 2.29V(-3mV / ℃/ cell)
Equalize Charge Voltage 2.35 - 2.40V(-3mV / ℃/ cell)
Container Material ABS(UL94-V0 optional)

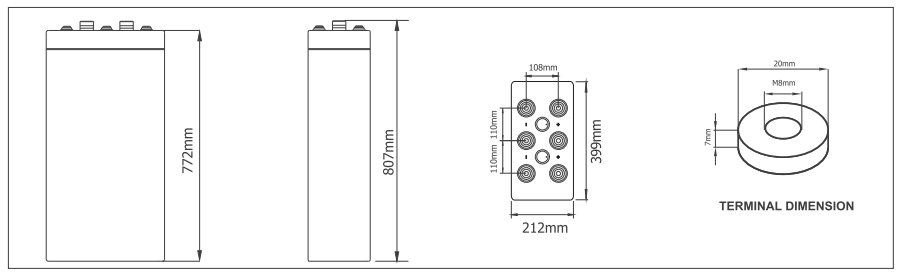

DIMENSIONS

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

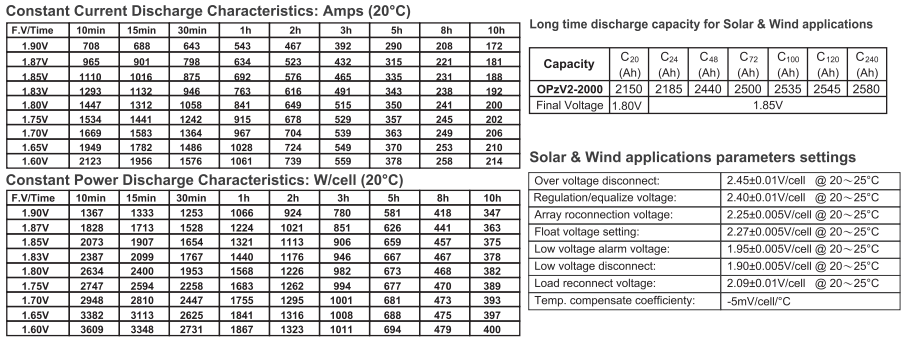

BATTERY DISCHARGE TABLE                            PARAMETERS FOR SOLAR & WIND APPLICATIONS

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy

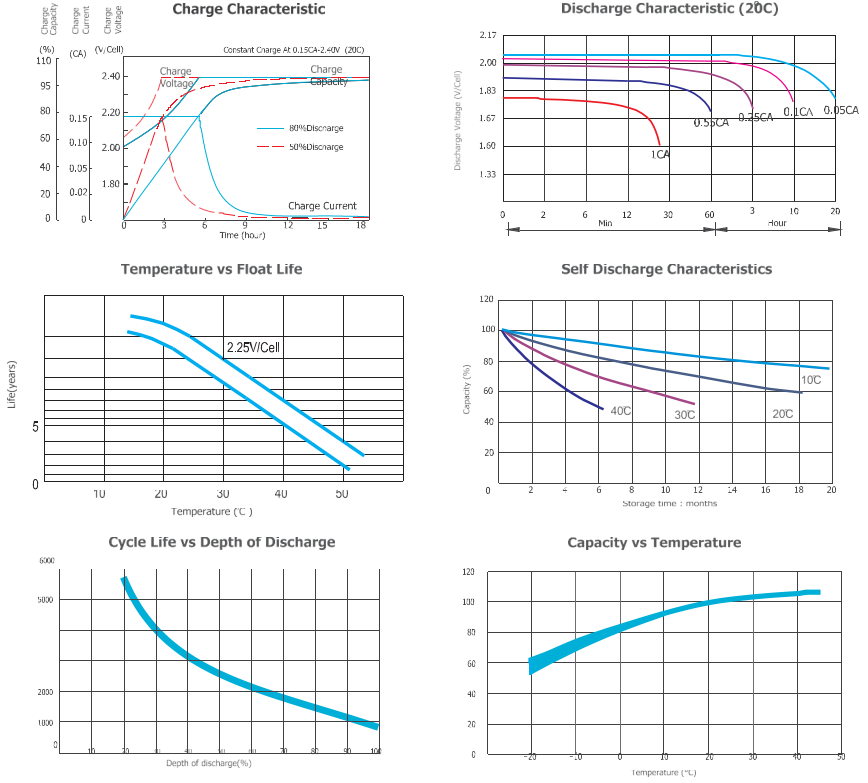

CHARACTERISTICS

Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy
Tubular 2V 2000Ah OPzV Gel Battery For Telecom Outdoor / Wind Energy
Application

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages

1. 20+ years design life at floating condition.

2. Wide operating temperature range from -40C to 60C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.
